How to test a generator with load dse 7310
The content provides instructions for using the Generator Control Panel in the Plant Room. Key points include:
- Generator Mode: The generator should always be in 'Auto' mode, verified by a lit red light on the control panel.
- Monthly On Load Test: To perform the test, press the manual button once to switch to manual mode (red light indicates this).

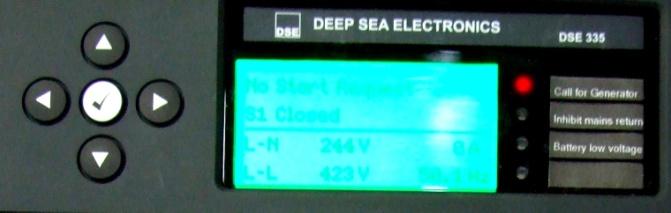

- Test Activation: Select 'Test on Load' using the Green MODE button, confirm with the tick button.
- Running the Test: Allow the generator to run for 15 minutes.
- Stopping the Test: Press the Red Stop button and then return to Auto mode by pressing the Auto button again.
- Additional Resources: A PDF guide for testing a generator with load is available for download. For further assistance, contact information is provided.
Using the Generator Control Panel In the Plant Room.
| | | | --- | --- | | Generator – at all times the generator is in Auto.
Generator control panel Auto button.
This button red lightmust always lit.
to ensure the generator remains in automatic mode ready to take load during any power outage. |
Red light will be lit. You are now in manual mode. | | | Press the Green MODE button repeatedly until “Test on Load“ is shown on the display. |
A LED indicator beside the button confirms this action. |
| | #### The Generator Will Now Start – Leave generator to run for 15 minutes | | To STOP ON Load test press the RedStop button.
to bring the generator back into automatic mode. |
Generator control panel Auto button.
This button red lightmust always litto ensure the generator is in automatic mode ready to take load during any power outage. |
Download our PDF guide:
How to test a generator with load-DSE 7310
